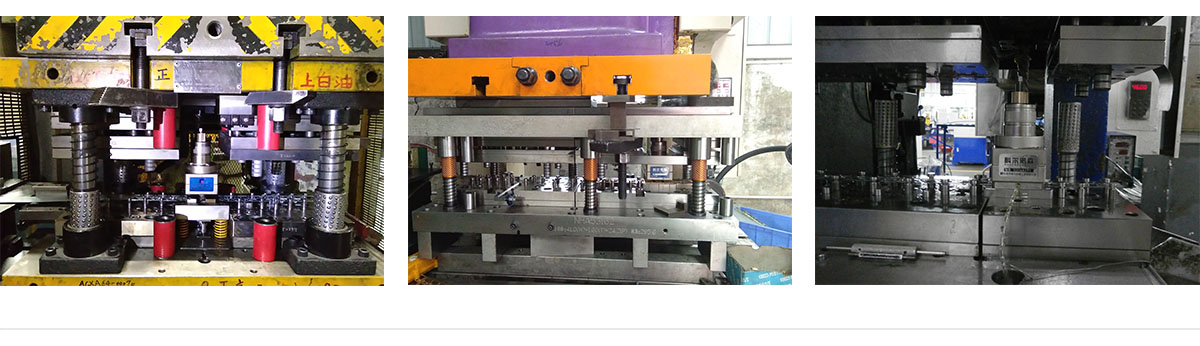

Install the renderings
Configurations
· Screwtap detector.
· Mutifunction secrity detector for tooling.
· Bottom dead centre detector.
· Positioning system for product.
· Thread detector system.
· Screwtap cooling system.
Technical parameter
| Model | 8S | 8SF |
| Punch Stroke | 50-300mm | |
| Center distance | — | — |
| Tapping Size | Metric M2 -M7 or corresponding inch UNC/UNF/BSW threads | |
| Qty of tapping hole | 1 | |
| Installation type | Suspended installation with quick dowel positioning | |
| Remarks | Standard | Customized |
Overall dimension
How to order
DZX-8S-T
DZX-8S/F-T
T：means punch stroke
F：means customized span
